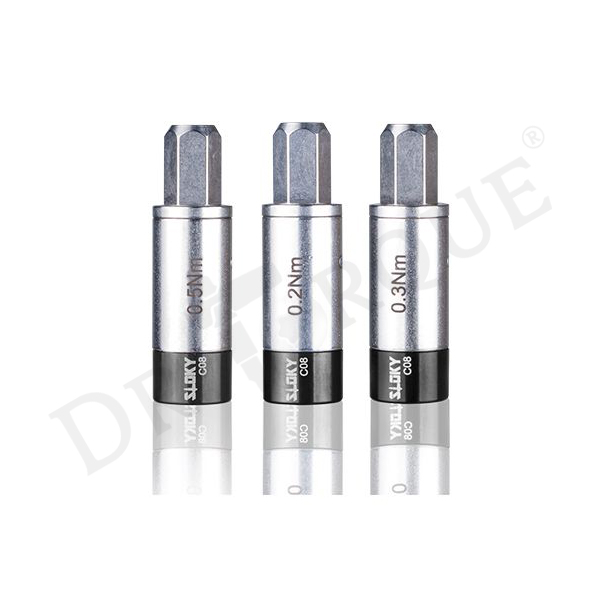

Small Torque Adapter (STA)
Torque ranges from 0.1 Nm to 0.8 Nm with 1/4” hexagon connecting parts, compatible with various handles.
This series of Torque Adapters is ideal for precision devices such as watches, measuring instruments, microdevices, and more.
Adapter of Torque Screwdriver
The torque adapter is the most important core of a torque screwdriver. Cutting tools with different shank diameters are suitable for different tightening torque values. They must be tested and proven to ensure that there will be no problems in use.
The function of the torsion sleeve is to fix the torque, which can ensure that different operators have a fixed force when locking the tool. There is no need to worry about the locking force being too light, which will cause the tool to loosen during processing; there is no need to worry about the locking force. Too heavy, causing damage to the screw, damage to the screwdriver bit, or locking of the tool.
Torque adapter has a cue sound feature, when the preset torque is reach will make click sound. And there are color management and important lasered information on the adapter to prevent operator making mistakes.
- Torque tested to DIN EN ISO 6789
- 20,000 times product life test
- 30% higher torque for loosening
- Torque Accuracy: ±10%
- Installed with magnet for C6.3 and E6.3 bits
Contents
- Case x 1
- Adapter x 3
Made in Taiwan

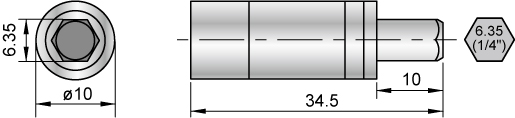

Technical Details
Drag left or right for more information.| Parts No. | Nm | Kgfcm | ln-lb | Qty | N.W. |
|---|---|---|---|---|---|
| *0-TPK-STA-0.1 | 0.1 | 1.0 | 0.9 | 3 pcs | 60g |
| 0-TPK-STA-0.2 | 0.2 | 2.0 | 1.8 | 3 pcs | 60g |
| 0-TPK-STA-0.3 | 0.3 | 3.1 | 2.7 | 3 pcs | 60g |
| 0-TPK-STA-0.4 | 0.4 | 4.1 | 3.5 | 3 pcs | 60g |
| 0-TPK-STA-0.5 | 0.5 | 5.1 | 4.4 | 3 pcs | 60g |
| *0-TPK-STA-0.6 | 0.6 | 6.1 | 5.3 | 3 pcs | 60g |
| *0-TPK-STA-0.7 | 0.7 | 7.1 | 6.2 | 3 pcs | 60g |
| *0-TPK-STA-0.8 | 0.8 | 8.2 | 7.0 | 3 pcs | 60g |
| With * Mark is non-stock item. MOQ : 10 boxes. | |||||
