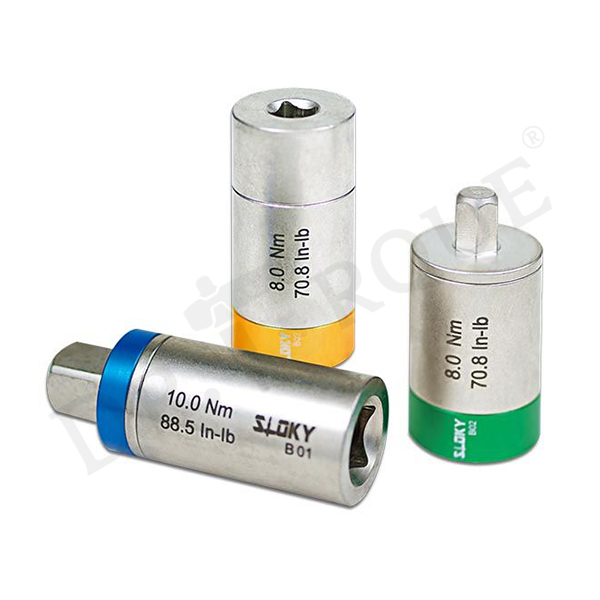

Extended Torque Adapter (ETA / ETB / ETC)
Torque Adapter designed for high torque applications ranging from 6 to 18 Nm.
This innovative concept introduces a large torque adapter in the 6–18 Nm range, a solution not previously available. Ideal for automotive, motorcycle, and other heavy-duty torque control applications.
Compatible with various handles and tools.
Description
Features
- The torque adapter is functional by the radial direction friction.
- It is different from the marketed product nowadays.
- When an object slips or is going slip with another object, on the two contact faces will create a relative action. This relative action is called the static friction, it creates the abrasion after use a certain time.
- The preset torque of adapter may get low due to this abrasion.
Specification
- Material: Carbon Steel
- Hardness: HRC 43° ~ 48°
- Surface Treatment: Electroless Nickel
- Unit conversion: 1 Nm = 10.20kgf-cm
Contents
- bag x 1
- Adapter x 1
0-TPK-ETA For Connecting Part: DIN 3126 1/4″ Hex Drive
0-TPK-ETB For Connecting Part: DIN 3120 1/4″ Square Drive
0-TPK-ETC For Connecting Part: DIN 3120 3/8″ Square Drive
Made in Taiwan
Technical Details
Technical Details
Drag left or right for more information.| Parts No. | Nm | Kgfcm | ln-lb |
|---|---|---|---|
| 0-TPK-ETA For Connecting Part: DIN 3126 1/4" Hex Drive | |||
| 0-TPK-ETA-6.0 | 6.0 | 61.1 | 53.1 |
| *0-TPK-ETA-6.5 | 6.5 | 66.2 | 57.5 |
| *0-TPK-ETA-7.0 | 7.0 | 71.3 | 62.0 |
| 0-TPK-ETA-8.0 | 8.0 | 81.5 | 70.8 |
| 0-TPK-ETA-10.0 | 10.0 | 101.9 | 88.5 |
| 0-TPK-ETB For Connecting Part: DIN 3120 1/4" Square Drive | |||
| 0-TPK-ETB-8.0 | 8.0 | 81.5 | 70.8 |
| 0-TPK-ETB-10.0 | 10.0 | 101.9 | 88.5 |
| 0-TPK-ETB-12.0 | 12.0 | 122.3 | 106.2 |
| *0-TPK-ETB-15.0 | 15.0 | 152.9 | 132.8 |
| *0-TPK-ETB-18.0 | 18.0 | 183.4 | 159.3 |
| 0-TPK-ETC For Connecting Part: DIN 3120 3/8" Square Drive | |||
| 0-TPK-ETC-8.0 | 8.0 | 81.5 | 70.8 |
| 0-TPK-ETC-10.0 | 10.0 | 101.9 | 88.5 |
| 0-TPK-ETC-12.0 | 12.0 | 122.3 | 106.2 |
| *0-TPK-ETC-15.0 | 15.0 | 152.9 | 132.8 |
| *0-TPK-ETC-18.0 | 18.0 | 183.4 | 159.3 |
| With * Mark is non-stock item. MOQ : 30 pcs. | |||
