Power Tool Torque Adapter (PTEQ)
An increasing number of screw connections in service and industry require tightening to a specified torque. Only the correct torque ensures secure fastening while allowing for quick and easy loosening.
Description
This special torque adapter is designed for power tool. The torque range is from 2.0Nm to 5.0Nm and suitable for DIN3126 E6.3 bits. It can apply on electric screwdriver with the speed limit is under 250 r.p.m. which make works to be done faster, easier and precision. It is an ideal for mass tightening jobs, e.g. fixture, assembly, cutter, etc.

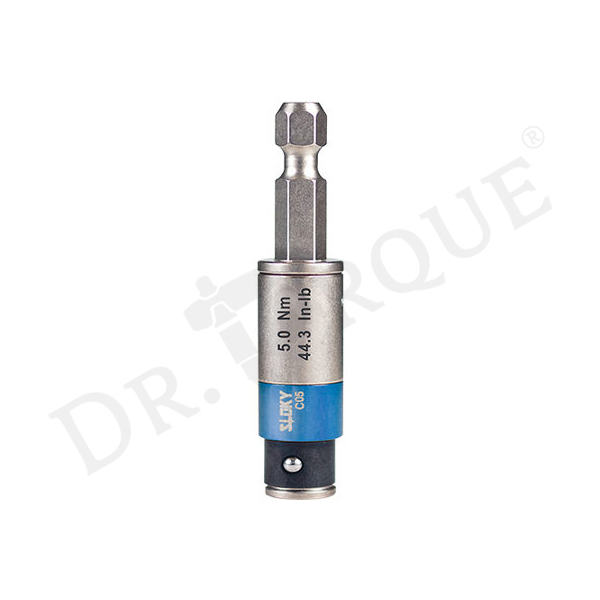

E6.3 Torque Adapter
For Connecting Part: DIN 3126 1/4″ Hex Drive
Feature:
- Click sound: When the preset torque is reach will make click sound continuously
- Reversible system: Higher torque for loosening
- Torque adapter is with important lasered information to prevent operator making mistakes
- Torque adapter torque value is with a tolerance of +/- 10%
- Speed limits below 250r.p.m
- Material: Mid carbon steel
- Hardness: HRC 43° ~ 48°
- Magnet adsorption design
Contents
- bag x 1
- Adapter x 1
Made in Taiwan
Technical Details
Technical Details
Drag left or right for more information.| Parts No. | Nm | Kgfcm | ln-lb |
|---|---|---|---|
| 0-TPK-PTEQ-6.3-2.0 | 2.0 | 20.4 | 17.7 |
| 0-TPK-PTEQ-6.3-3.0 | 3.0 | 30.6 | 26.6 |
| 0-TPK-PTEQ-6.3-4.5 | 4.5 | 45.9 | 39.8 |
| 0-TPK-PTEQ-6.3-5.0 | 5.0 | 51.0 | 44.3 |
