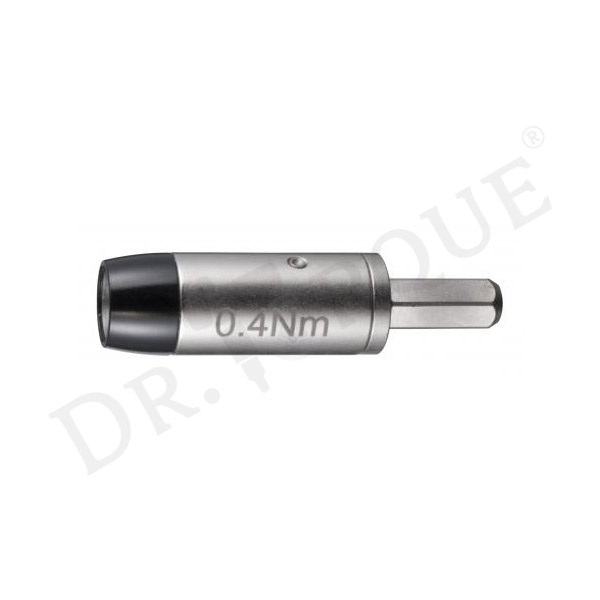

Mini Torque Adapter (MTA)
Mini Torque Adapters ranging from 0.1 to 0.7 Nm, specially designed for precision applications.

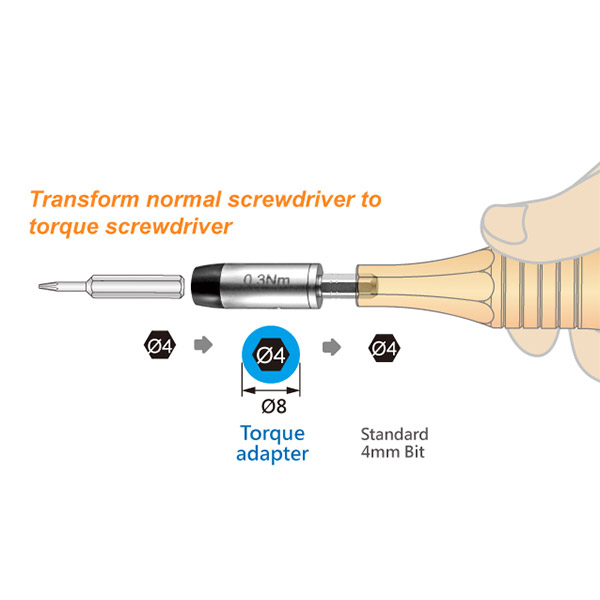

Ideal for use in cell phones, laptops, drones, cameras, watches, and various 3C devices, these adapters transform standard screwdrivers into torque-controlled tools.
Compatible with most 4 mm bits and handles available in the market, ensuring easy integration and enhanced accuracy.
Features
- The torque adapter is functional by the radial direction friction.
- It is different from the marketed product nowadays.
- When an object slips or is going slip with another object, on the two contact faces will create a relative action. This relative action is called the static friction, it creates the abrasion after use a certain time.
- The preset torque of adapter may get low due to this abrasion.
Specification
- Material: Carbon Steel
- Hardness: HRC 43° ~ 48°
- Surface Treatment: Electroless Nickel
- Unit conversion: 1 Nm = 10.20kgf-cm
A total solution for applications below:
• Communication Devices
• Consumer Electronics
• Drones/UAV
• Smart Phones
• Printed Circuit Boards
• Watches ……..
Contents
-
- Case x 1
- Adapter x 3 (0.1~0.7Nm)
Made in Taiwan
Technical Details
Drag left or right for more information.| Parts No. | Nm | Kgfcm | ln-lb |
|---|---|---|---|
| 0-TPK-MTA-0.1 | 0.1 | 1.0 | 0.9 |
| 0-TPK-MTA-0.2 | 0.2 | 2.0 | 1.8 |
| 0-TPK-MTA-0.3 | 0.3 | 3.1 | 2.7 |
| 0-TPK-MTA-0.4 | 0.4 | 4.1 | 3.5 |
| 0-TPK-MTA-0.5 | 0.5 | 5.1 | 4.4 |
| 0-TPK-MTA-0.6 | 0.6 | 6.1 | 5.3 |
| 0-TPK-MTA-0.7 | 0.7 | 7.1 | 6.2 |
