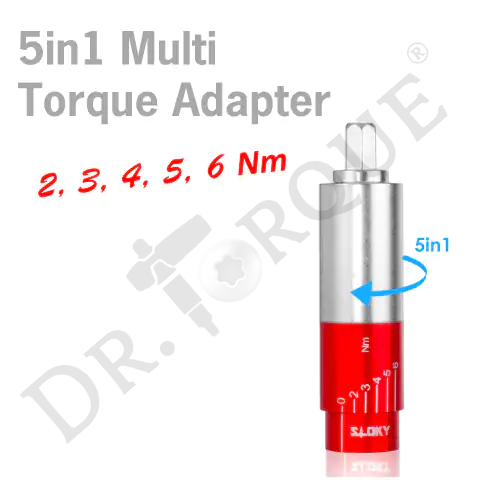

5 in 1 Multi-Torque Adapter
The Torque Adapter is the most critical component of a torque screwdriver. Cutting tools with different shank diameters correspond to specific tightening torque values. Each must be tested and validated to ensure reliable performance during use.
The product expands the range of applications, including hunting, shooting, ceiling installations, window fittings, and construction fastening.
Adapter of Torque Screwdriver
The torque adapter is the most important core of a torque screwdriver. Cutting tools with different shank diameters are suitable for different tightening torque values. They must be tested and proven to ensure that there will be no problems in use.
The function of the torsion sleeve is to fix the torque, which can ensure that different operators have a fixed force when locking the tool. There is no need to worry about the locking force being too light, which will cause the tool to loosen during processing; there is no need to worry about the locking force. Too heavy, causing damage to the screw, damage to the screwdriver bit, or locking of the tool.
Torque adapter has a cue sound feature, when the preset torque is reach will make click sound. And there are color management and important lasered information on the adapter to prevent operator making mistakes.
Adjustable torque adapter 2 ~ 6 Nm, 1 PC (Red Ring) Connecting Part: 1/4″ Hex Driving Part: 1/4 Hex
Features
- Click sound: When the preset torque is reach will make click sound continuously
- Visually determine the torque value during the locking process
- Apply to everywhere needs torque control
- Ideal for different applications with multiple torque requirements, and convenient usage
- Reversible system: Higher torque for loosening
- Torque adapter is with important lasered information to prevent operator making mistakes
- Magnet adsorption design
Specification
- Material: Carbon Steel
- Hardness: HRC 43° ~ 48°
- Surface Treatment: Electroless Nickel
- Unit conversion: 1 Nm = 10.20kgf-cm
Contents
- bag x 1
- Adapter x 1
Made in Taiwan

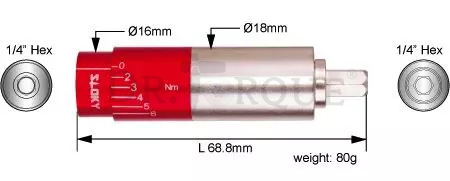

Technical Details
Drag left or right for more information.| Parts No. | Nm | Kgfcm | ln-lb | Qty | Ød | Driving | P (mm) | L (mm) | N.W. |
|---|---|---|---|---|---|---|---|---|---|
| 0-TPK-5IN1-6.0 | 2.0 | 20.4 | 17.7 | 1 | 18 | DIN 3126 1/4" Hex | 10 | 68.8 | 105g |
| 3.0 | 30.6 | 26.6 | |||||||
| 4.0 | 40.8 | 35.4 | |||||||
| 5.0 | 51.0 | 44.3 | |||||||
| 6.0 | 61.1 | 53.1 |
