This screwdriver has six rotational speeds and may be used for a variety of tasks. It has a narrower range of torque output that is sufficient to fulfill different applications thanks to its step-less torque adjustment, high output torque, and small design. Due to the lack of carbon brush dust, it is unquestionably one of the best screwdrivers for use in classrooms. The electric screwdriver is easier to maintain since the body and connecting line have independent structures.
With its lightweight characteristic, it also ensures extended and fatigue-free working. The newly developed internal rotating motor, which is sensorless, brushless, and highly precise, makes it the ideal screwdriver for prolonged precision work. It has numerous essential qualities, including high stability, low temperature rising characteristics, and strong resistance to impulsive vibration, all prolonging the switch’s life.

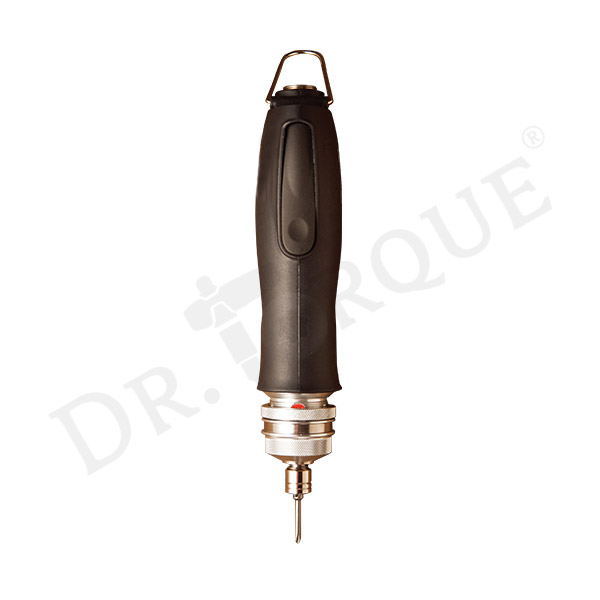

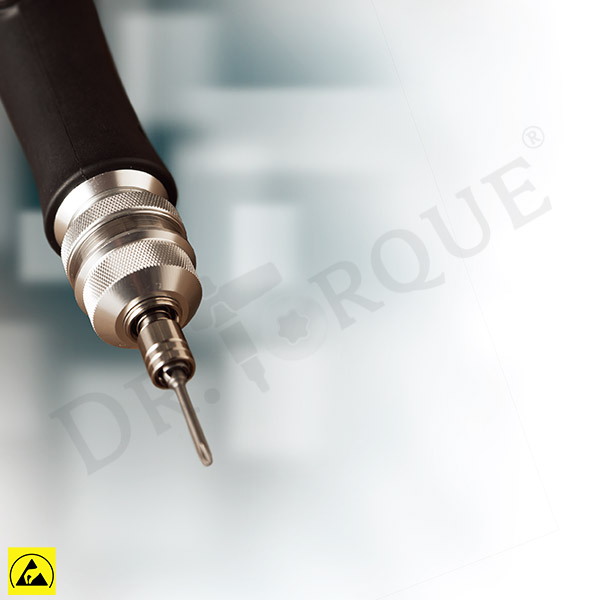

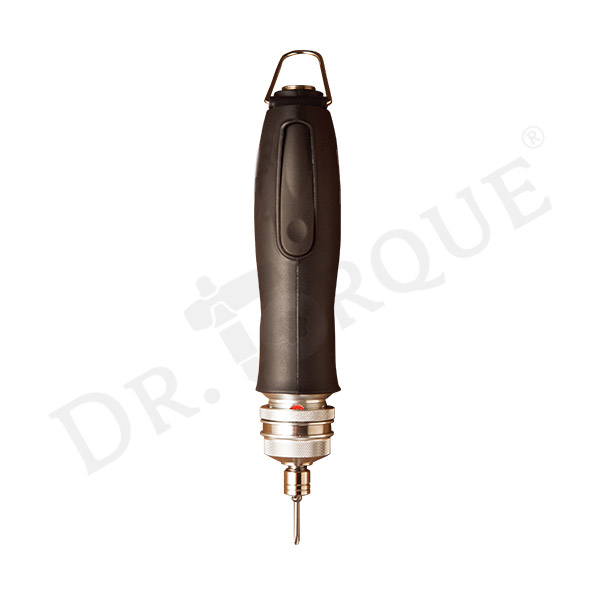

ESD – Safe Electric Screwdriver
Contents
Made in Taiwan
Technical Details
Drag left or right for more information.| MODEL | DTF-603BL | DTF-607BL | DTRE-612BL | DTRE-618BL | DTRE-625BL | DTRE-630BL | |
|---|---|---|---|---|---|---|---|
| FREE SPEED (rpm) | 660/480 | 1000/750 | 1000/750 | 1000/750 | 660/480 | 660/480 | |
| OUTPUT TORQUE RANGE | N.m | 0.02~0.3 | 0.05~0.7 | 0.08~1.2 | 0.08~2.0 | 0.2~2.5 | 0.2~3.0 |
| Ibf.in | 0.17~2.6 | 0.43~6.1 | 0.7~10.4 | 0.7~17.4 | 1.7~21.7 | 1.7~26.0 | |
| kgf.cm | 0.2~3.0 | 0.5~7.0 | 0.8~12.0 | 0.8~20.0 | 2.0~25.0 | 2.0~30.0 | |
| START | LEVER START/PUSH START | ||||||
| CONTROLLER | SW1-B/T-1-SWB | T-1-SWB | |||||
| ESD | YES | ||||||
