This screwdriver is ideal for use on various product production lines. Both revolutions in forward and reverse are controlled by the first full button. In addition to increasing torque precision and service life, the buffer shock absorption device prevents vibration-induced damage to components. It is lightweight, small, and simple to use as well as replace thanks to those features.
Due to its smaller size and increased torque output, the High-Power Rare-Earth Magnet Motor used in this screwdriver is safe thanks to double insulation. Built-in torque adjustment and an anti-locking ring prevent the on-site operator from unintentionally changing the torque by allowing the output torque to be adjusted directly.
* There is an option to choose between lever or switch for DTF series model for its reverse function operation mode. Customers can choose the operation depending on their requirement.
*DTRE Series is compatible with AT base to fulfil automation needs
ESD – Safe Electric Screwdriver
Contents
Made in Taiwan
Technical Details
Drag left or right for more information.| MODEL | DTRE-4500 | DTRE-4800 | DTRE-5000 | DTRE-4500P | DTRE-4800P | |
|---|---|---|---|---|---|---|
| FREE SPEED (rpm) | 1000 | 660 | 900 | 1000 | 660 | |

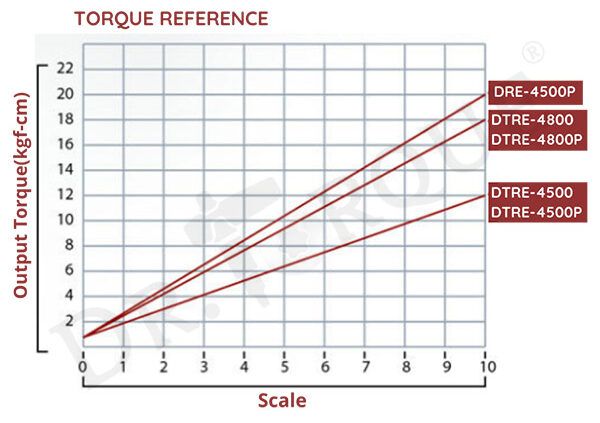

| OUTPUT TORQUE RANGE | N.m | 0.08~1.2 | 0.008~1.8 | 0.08~2.0 | 0.08~1.0 | 0.08~1.6 |
| Ibf.in | 0.7~10.4 | 0.7~15.6 | 0.7~17.4 | 0.7~8.7 | .7~13.9 | |
| kgf.cm | 0.8~12.0 | 0.8~18.0 | 0.8~20.0 | 0.8~10.0 | 0.8~16.0 | |
| STARTÂ | LEVER START | PUSH START | ||||
| CONTROLLER | A/B/C/D/E/F/G/H | C/F | ||||
| ESD | YES | |||||
