Pro Station Torque Screwdriver Set (TX / IP / HX)
Most popular Torque Screwdriver Pro Station Set with 3 types of Torque Handles and 22 pcs of 50 mm Bits (TX / IP / HX)
Pro Station Set Sloky Torque Screwdrivers with Hex, Torx and Torx Plus bits for different Nm Torque Adapters.
User-friendly for CNC cutting tools of machining, turning and milling.
Features:
- Pro Station includes 3 Torque Handles, 8 Torque Adapters and 22 Torque Bits
- Torque Handles H01-B H02-B H03-B
- Torque Adapters 0.6 Nm 0.9 Nm 1.2 Nm 1.4 Nm 2.0 Nm 3.0 Nm 5.0 Nm 5.5 Nm
- Torque Bits T6, T7, T8, T9, T10, T15, T20, T25 50 mm 6 IP, 7 IP, 8 IP, 9 IP, 10 IP, 15 IP, 20 IP, 25 IP 50 mm H1.5, H2.0, H2.5, H3.0, H4.0, H5.0 50 mm
Pro Station torque screwdriver kit is with universal, straight and T-flying handles, 8 torque adapters (0.6 ~ 6Nm) and 22pcs of 50mm color coded bits (Torx ,Torx Plus and Hex) available. It’s a multi set professional play.
Features

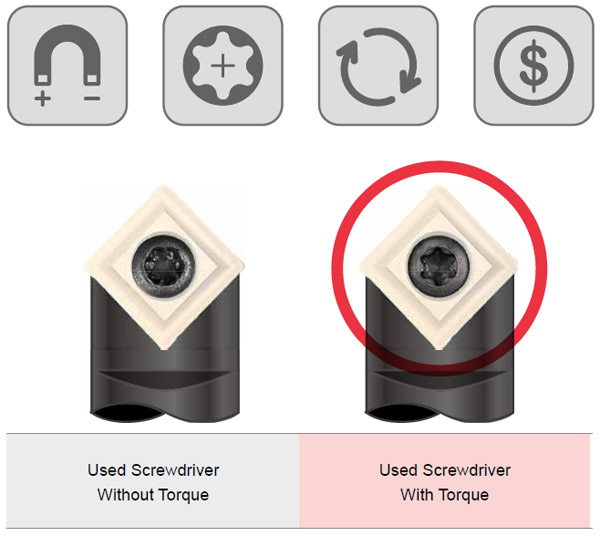

- Let CLICK Tell You When the Torque is Reached!
- Quick release! Simply pull the bit outward to change new bit
- Perfect positioning in the bits
- A Secure hold, you’ll never second-guess, a precision torque tool is only as good as its results
- With proper testing equipment and system, we can ensure you never have to question our products accuracy and quality
- User friendly for CNC cutting tool of machining, turning and milling
Specification
- 0-TPK26-PR-22K contains a Universal, Slim-Flit and T flying handles, 8pcs of torque adapters, 22pcs of 50mm Torx/Torx Plus bits/Hex. The sizes are TX6, TX7, TX8, TX9, TX10, TX15, TX20 and TX25 for Torx, and 6IP, 7IP, 8IP, 9IP, 10IP,15IP, 20IP and 25IP for Torx Plus. The corresponding torques are 0.6, 0.9, 1.2, 1.4, 2.0, 3.0, 5.0 and 5.5Nm, which equal to 5.3, 8.0, 10.6, 12.4, 17.7, and 26.6 In-lb. (Torques are the same for both Torx and Torx Plus systems) The T-type Universal Handle is 2 3/4″ X 3/4″ X 1 1/2″ (L X W X H) and the small soft grip HD handle is 4″ in length and 1 1/4″ in diameter. The torque adapters which have the industrial standard preset torque are magnetized and color coded. The high alloy steel bits are also magnetized and color coded with the hardness of 58-60 HRC.
Contents

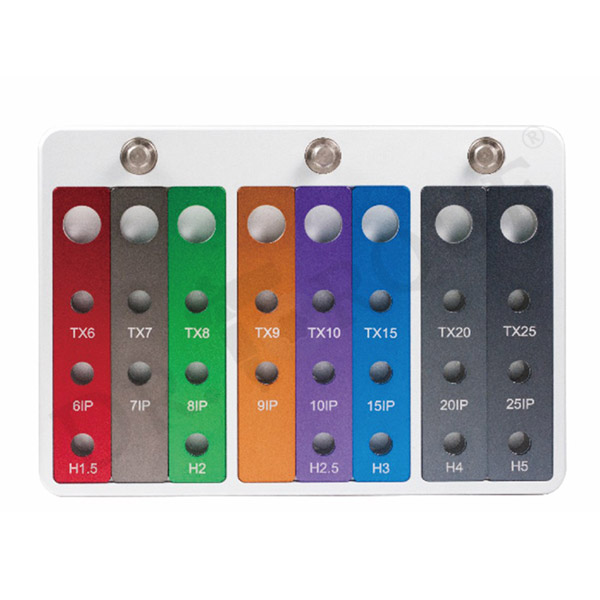

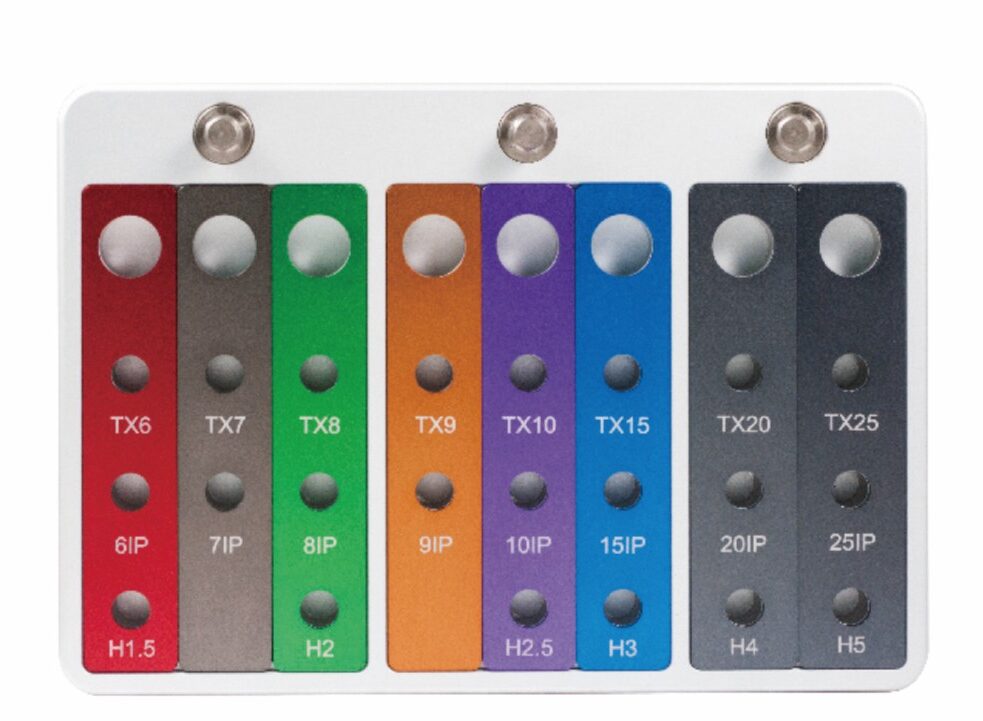

- Stage x 1
- Handle x 3
- Torque Adapter x 8
- 50mm Bits x 22
Instructions
Large support areas for thumb and index finger on the ergonomically shaped handles.
The transmission of high torques is thus quite simple.
Cylindrical handle shaft for quick turning of screws.
* This product is only suitable for manual operation. Do not apply with other.
Torque Screwdriver for Pro Station
TORX® and TORX PLUS® are registered trademarks of Acument global technologies LLC.
Made in Taiwan
Technical Details
Drag left or right for more information.| Parts No. | Handle | Adapter | TORX Bits | TORX Plus Bits | Hexagon Bits |
|---|---|---|---|---|---|
| 0-TPK26-PR-22K | TPK-H02-B | 0.6 Nm | TX6 | 6IP | H1.5 |
| 0.9 Nm | TX7 | 7IP | - | ||
| 1.2 Nm | TX8 | 8IP | H2.0 | ||
| TPK-H01-B | 1.4 Nm | TX9 | 9IP | - | |
| 2.0 Nm | TX10 | 10IP | H2.5 | ||
| 3.0 Nm | TX15 | 15IP | H3.0 | ||
| TPK-H03-B | 5.0 Nm | TX20 | 20IP | H4 | |
| 5.5 Nm | TX25 | 25IP | H5 |
