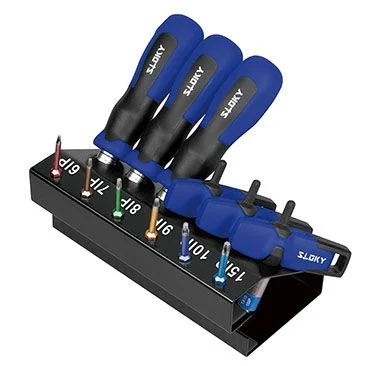

Work Station (Blue) for Torx Plus
Handy Set of Sloky Torque Screwdriver with Hex, Torx, and Torx Plus Bits for various Nm Torque Adapters.
User-friendly for CNC cutting tools in machining, turning, and milling.
Features:
- Torx Plus Work Station, 6 Torque Handles, 6 Torque Adapters, and 12 Torque Bits
- Torque Handles H01-B, H02-B
- Torque Adapters 0.6 Nm, 0.9 Nm, 1.2 Nm, 1.4 Nm, 2.0 Nm, 3.0 Nm
- Torque Bits 6IP, 7IP, 8IP, 9IP, 10IP, 15IP, 25mm & 50mm
Description
Most useful and accepted kit of Sloky torque screwdriver in the factory to share with all operators. Specially customized 6 screwdrivers handle with 6 Sloky torque screwdrivers Adapter (0.6 ~ 6Nm) and 6 pcs each of 25mm and 50mm bits (Torx and Torx Plus) available.
Features
- Let CLICK Tell You When the Torque is Reached!
- Quick release! Simply pull the bit outward to change new bit
- Perfect positioning in the bits
- A Secure hold, you’ll never second-guess; a precision torque tool is only as good as its results
- With proper testing equipment and system, we can ensure you never have to question our products accuracy and quality
- User friendly for CNC cutting tool of machining, turning and milling
Specification
- 0-TPK02-PR-12 contains six (6) pcs of size-marked Handles (red for Torx and blue for Torx Plus) w/ torque adapters, six (6) pcs of 25mm Torx or Torx Plus bits, and six (6) pcs of 50mm Torx or Torx Plus bits in a size-marked steel stand. The sizes are TX6, TX7, TX8, TX9, TX10, and TX15 for Torx, and 6IP, 7IP, 8IP, 9IP, 10IP, and 15IP for Torx Plus. The corresponding torques are 0.6, 0.9, 1.2, 1.4, 2.0, and 3.0 Nm, which equal to 5.3, 8.0, 10.6, 12.4, 17.7, and 26.6 In-lb. (Torques are the same for both Torx and Torx Plus systems) The Handle w/ torque adapter is 2 3/4″ X 3/4″ X 2 5/8″ (L X W X H). The torque adapters which have the industrial standard preset torque are magnetized and color coded. The high alloy steel bits are also magnetized and color coded with the hardness of 58-60 HRC.
Contents
- Show Case x 1
- Screwdriver Handle x 6
- Torque Adapter x 6
- 25mm Bits x 6
- 50mm Bits x 6
Instructions
Large support areas for thumb and index finger on the ergonomically shaped handles.
The transmission of high torques is thus quite simple.
Cylindrical handle shaft for quick turning of screws.
* This product is only suitable for manual operation. Do not apply with other electric tools or power tools.
TORX® and TORX PLUS® are registered trademarks of Acument global technologies LLC.
Made in Taiwan
Technical Details
Technical Details
Drag left or right for more information.| Parts No. | Handle | Driver Size | Nm | Kgfcm | ln-lb | 25mm+50mm |
|---|---|---|---|---|---|---|
| Work Station torque screwdriver set for TORX® | ||||||
| 0-TPK01-PR-12 | TPK-H02 | TX6 | 0.6 | 6.1 | 5.3 | 1 pc + 1 pc |
| TX7 | 0.9 | 9.2 | 8.0 | 1 pc + 1 pc | ||
| TX8 | 1.2 | 12.0 | 10.6 | 1 pc + 1 pc | ||
| TPK-H01 | TX9 | 1.4 | 14 | 12.4 | 1 pc + 1 pc | |
| TX10 | 2.0 | 20.4 | 17.7 | 1 pc + 1 pc | ||
| TX15 | 3.0 | 30.6 | 26.6 | 1 pc + 1 pc | ||
| Work Station torque screwdriver set for TORX PLUS® | ||||||
| 0-TPK02-PR-12 | TPK-H02-B | 6IP | 0.6 | 6.1 | 5.3 | 1 pc + 1 pc |
| 7IP | 0.9 | 9.2 | 8.0 | 1 pc + 1 pc | ||
| 8IP | 1.2 | 12.0 | 10.6 | 1 pc + 1 pc | ||
| TPK-H01-B | 9IP | 1.4 | 14 | 12.4 | 1 pc + 1 pc | |
| 10IP | 2.0 | 20.4 | 17.7 | 1 pc + 1 pc | ||
| 15IP | 3.0 | 30.6 | 26.6 | 1 pc + 1 pc | ||
| Work Station torque screwdriver set for HEXAGON | ||||||
| 0-TPK03-PR-12 | TPK-H02 | H1.5 | 0.6 | 6.1 | 5.3 | 1 pc + 1 pc |
| H2.0 | 1.2 | 12.0 | 10.6 | 1 pc + 1 pc | ||
| H2.5 | 2.0 | 20.4 | 17.7 | 1 pc + 1 pc | ||
| TPK-H01 | H3.0 | 3.0 | 30.6 | 26.6 | 1 pc + 1 pc | |
| H4.0 | 5.0 | 51.0 | 44.3 | 1 pc + 1 pc | ||
| H5.0 | 5.5 | 56.1 | 48.7 | 1 pc + 1 pc | ||
