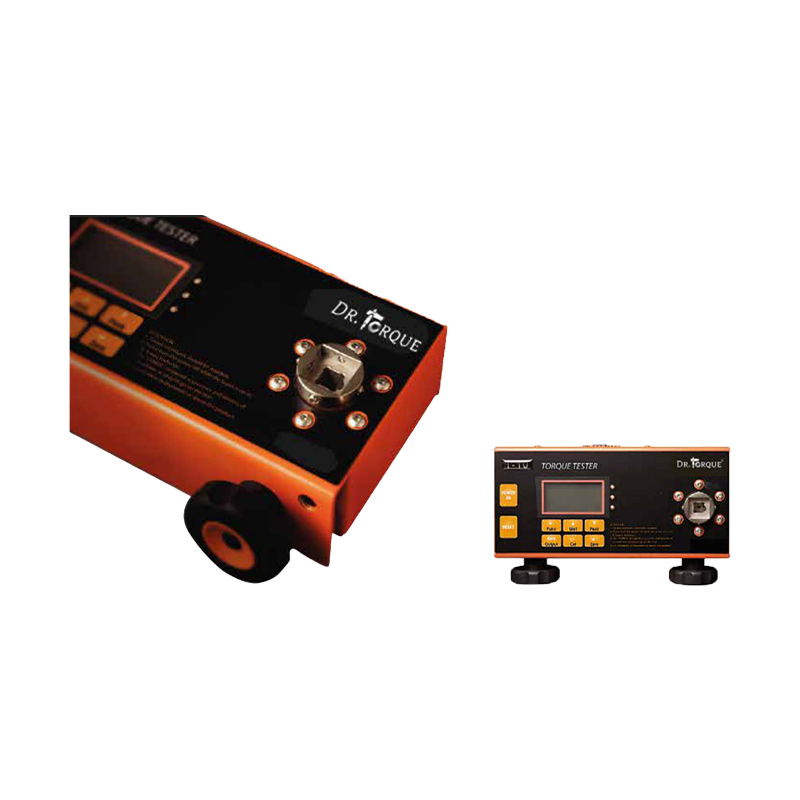

Digital Torque Meter
Features :
- Dual motor displays both positive and negative torque values
- Auto-reset function improves speed (no need to press the zero button manually)
- Selectable units in kgf-cm and lb-in
- Peak, track, and switching modes
- Equipped with a specialized printer to print each torque value
Electronic Screwdriver Torque Calibration including Rechargeable Battery.
Features:
- Dual motor to display both positive and negative torque values
- Auto-reset function to improve speed (without manually pressing the zero button)
- Selectable units: kgf-cm, lb-in
- Peak, track, and switching functions
- Equipped with a specialized printer for printing each torque value
The fixtures and normal torque tester (HP-100) are the same.
DTT-10/DTT-100 Digital Torque Meter Parameters Lists
| Model | DTT-10 | DTT-100 |
| Torque Capacity | 0.15 ~ 10.0 kgf-cm | 1.5 ~ 100.0 kgf-cm |
| 0.015 ~ 0.981 Nm | 0.15 ~ 9.81 Nm | |
| 0.13 ~ 8.68 Lbf·in | 1.3 ~ 86.8 Lbf·in | |
| Measurement Mode Operating | Track / Peak / First Peak | |
| Accuracy | 0.5% F. S. | |
| Maximum Torque | Maximum 150% | |
| Dimension | 230 (W) x 140 (D) x 65 (H) mm | |
| Machine Weight | 2.2 Kg | |
| Battery Specifications | 8 hours of charging, 8 hours of continuous use / 500 charge and discharge cycles | |
| Charge | AC 100V – AC 240V, 50-60 Hz, 0.5 A | |
Accessories
Electric Screwdriver Stand: Measuring range below 0.5 Nm
⌀4, ⌀5, and 5mm ¼” Hex screwdriver (bits in four sizes )
Built-in lithium battery for extended battery life
Electric Screwdriver Test Spring with a measuring range of 0.5 Nm
Standard weight calibration is used to verify the accuracy of the torque value
