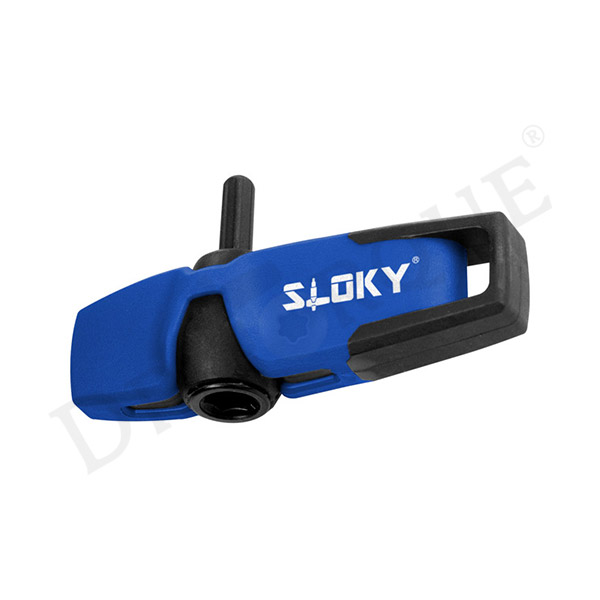

Universal Torque Handle (Blue)
Universal Torque Handle (Blue) for Sloky Torque Screwdriver with Hex, Torx, and Torx Plus Bits for torque less than 3 Nm. User-friendly for CNC cutting tools used in machining, turning, and milling.
Features:
- Universal design for multiple holding positions
- Large support surfaces for thumb and index finger, ensuring ease of use and efficiency
- Retains the advantages of the flag design, allowing screws to be driven easily
Universal handle is mostly wanted handle for our torque screwdriver products. Designed for 0.6~3.0Nm from TX/IP 6~15 Spec. We offer different 3 types of handles for different torque requirements and two colors, red for TX and blue for IP. The soft zone is comfortable to hold and play very flexible. Easy to tighten and loosen screws even in higher torque range. The outstanding design of the SLOKY handle fits perfectly into the hand and prevents the hand injuries such as blisters and calluses.
Dimensional Drawings of Universal handle for Sloky torque screwdriver (torque wrench).
Features
- Large support areas for the thumb and index finger on the ergonomically shaped handles.
- The transmission of high torques is thus quite simple. Cylindrical handle shaft for quick turning of screws.
- User friendly for CNC cutting tool of machining, turning, and milling.
Specification
- Good for all torques; recommended to apply with 0.6~3Nm like T6~T15 and 6IP~15IP
- All the handles have a 1/4″ hex slot to connect to the torque adapter.
- Compact T-type Universal Handle comes with a fast turning shaft on the top, the dimension is 2 3/4″ X 3/4″ X 2 5/8″ (L X W X H).
Contents
- Universal handle x 1
Instructions

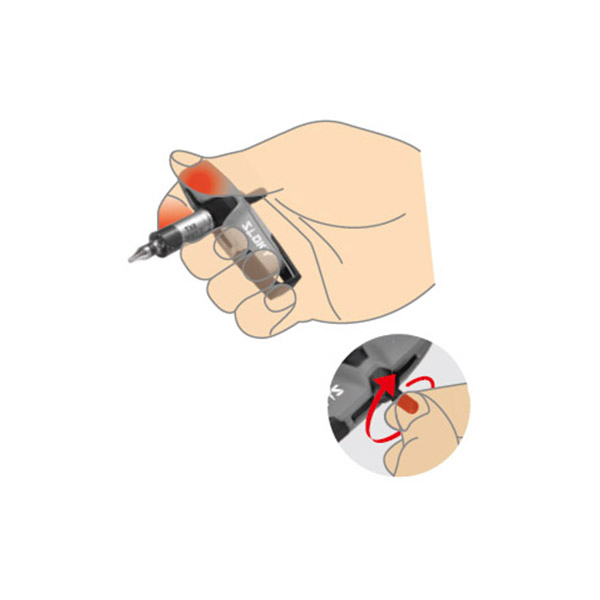

Large support areas for the thumb and index finger on the ergonomically shaped handles. The transmission of high torques is thus quite simple. Cylindrical handle shaft for quick turning of screws.

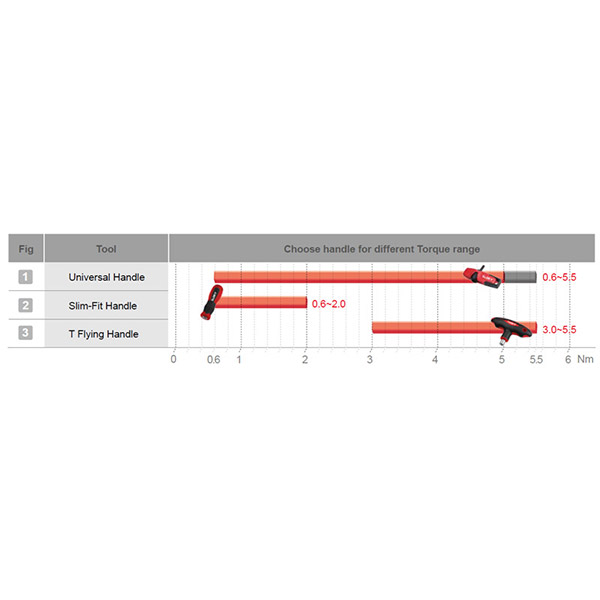

Choose Handle for Different Torque Range
Made In Taiwan
Technical Details
Universal Handle
Parts No. | Suit For Torque | Color | S | L | H | Ød | N.W. |
---|---|---|---|---|---|---|---|
0-TPK-H01 | 0.6~6.0 Nm | Red | 6.35 | 37.5 | 70.7 | 5 | 25g |
0-TPK-H01-B | 0.6~6.0 Nm | Blue | 6.35 | 37.5 | 70.7 | 5 | 25g |
